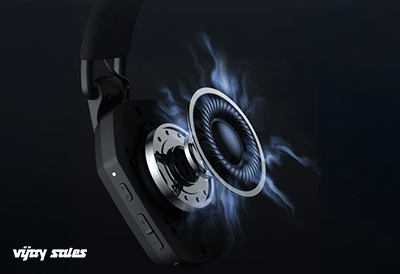

What Are Headphone Drivers?

Headphone Drivers Explained

A driver is the transducer that performs the function of headphone drivers. It receives an audio signal from your phone or amplifier and moves a diaphragm so air vibrates. That vibration becomes music. In marketing, you may see driver unit headphones highlighted in millimetres, but size alone does not determine quality. Materials, tuning, and the enclosure matter just as much.

Types of Headphone Drivers

Dynamic

The most common type is in both earphones and over-earphones. A voice coil sits in a magnetic field and moves a cone or dome diaphragm. Pros include strong bass potential, durability, and good efficiency. Sound character depends on the diaphragm material and tuning.

Planar magnetic

A thin film with embedded conductors is suspended between magnets. Movement is very uniform, which can give clean bass, fast transients, and wide staging. Planars love stable power and are often found in larger over-ears.

Balanced armature

A tiny reed pivots in a magnetic field to move a diaphragm. Very compact, so multiple drivers can be used in one in-ear to handle different frequency bands. Crisp detail is common, but bass depends on design and venting.

Hybrid

Combines dynamic for low frequencies with one or more balanced armatures for mids and highs. Aims to blend punch with detail. Crossover design is critical to avoid tonal mismatches.

Electrostatic

An ultra-thin diaphragm sits between charged stators. Movement is extremely precise and fast. Requires dedicated energisers, so it is a niche audiophile route.

Bone conduction and air-conduction hybrids

Send vibrations through the cheekbones while keeping the ear canal open. Useful for outdoor awareness and workouts, with a different presentation from traditional sealed earphones.

How Headphone Drivers Work

Every driver type aims to convert electrical signals to sound. In a dynamic driver, voltage across the coil creates a magnetic force that pushes or pulls the diaphragm. The diaphragm compresses and rarefies air, which becomes sound production in headphones. Planars spread the force across a film for very even motion. Balanced armatures pivot a tiny assembly that couples to a diaphragm. Good design controls unwanted resonances and keeps the diaphragm’s motion accurate across the frequency range.

Common Driver Sizes and Their Impact

• In-ear monitors often use 6 to 10 mm dynamic drivers. Larger 11 to 16 mm versions can deliver effortless low end, provided the ear tip seal is tight.



• On-ear and over-ear models typically use 30 to 50 mm drivers. Forty millimetres is common, 45 to 50 mm can provide headroom for bass and dynamics when tuned well.



• Balanced armatures are tiny and used in multiples rather than quoted by size.

Remember that enclosure design, venting, magnet strength, and diaphragm material influence performance more than diameter alone. A well-tuned 40 mm can outperform a mediocre 50 mm.

Factors to Consider While Choosing the Headphones Driver

Tuning and target

Frequency response curves matter more than raw size. Look for a balanced signature if you listen to many genres, or a mild V-shape for energetic pop and film scores.

Sensitivity and impedance

High sensitivity with modest impedance plays well with phones and laptops. Low sensitivity or higher impedance may need a dongle DAC or amplifier to show full dynamics.

Seal and comfort

For in-ears, the ear tip seal is crucial. A poor seal kills bass and detail. For over-ears, pads and clamp pressure influence both comfort and tone.

Materials and build

Diaphragms in PET, LCP, beryllium-coated films, or bio-cellulose each have their own traits. Good housings reduce resonance. In Indian humidity, stainless or coated parts resist corrosion better.

Use-case

Commuting needs isolation or strong active noise cancellation that pairs well with the driver. Home listening can benefit from open-back designs where soundstage matters more.

Service and parts

Replaceable pads and easy access to tips keep sound consistent over time. Brands with spares in India save headaches.

Conclusion

Drivers are the heart of your headphones, but they do not work alone. The design around them, the tuning, and the fit determine what you hear. Choose by sound signature, comfort, and practicality rather than diameter alone, and match sensitivity to your devices. Do that, and you will enjoy music that feels alive, whether you prefer punchy dynamics, planar clarity, or multi-driver precision.
