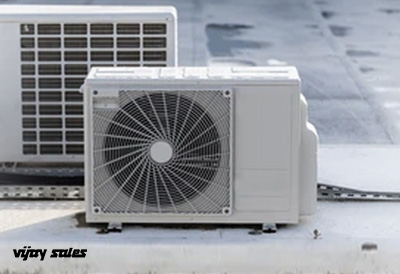

Air Conditioner Outdoor Unit and Components

Whether you call it an AC outdoor unit, aircon outdoor unit, or external air conditioning unit, this part plays a crucial role in heat exchange, ensuring that the warm air inside your home is efficiently expelled outside. Understanding how this unit works, its components, and how to maintain it can help improve your AC’s performance and lifespan.

Types of Outdoor AC Units

The air conditioner outdoor unit may differ slightly based on the sort of AC system you choose. Here are the most popular types:

1. Split Air Conditioner Outdoor Unit



This is the most common type used in homes. It consists of a compressor, condenser coil, and fan, all enclosed in a single metal cabinet placed outside the house.

1. Window Air Conditioner Unit



Technically, window ACs combine both indoor and outdoor components in a single box. However, the rear half of the unit (the part that expels hot air) functions similarly to an exterior air conditioner unit.

1. Central Air Conditioning Outdoor Unit



These are larger systems typically used in commercial spaces or large homes. The external air conditioning unit is connected to multiple ducts that distribute cool air across different rooms.

1. Portable or Hybrid Units



Some high-end portable or hybrid air conditioners come with a small outdoor exhaust component that releases warm air through a hose or mini vent system.

Components of an Outdoor AC Unit

The AC outdoor unit is built to handle the most important tasks, such as compressing refrigerant gas, dissipating heat, and ensuring efficient cooling inside your home. Let us look at its main parts:

1. Compressor- The compressor is the heart of the AC outdoor unit. It compresses the refrigerant gas, increasing its pressure and temperature, and then transfers it to the condenser coil. Modern systems often use inverter compressors for better energy efficiency and quieter operation.


1. Condenser Coil- This coil is responsible for releasing the heat absorbed from your room into the outside air. The air conditioner's outdoor unit has metal coils (usually copper or aluminium) that allow hot refrigerant to release its heat as it flows through.


1. Fan and Motor- The fan draws outside air through the condenser coils to help dissipate the heat. This process ensures that the refrigerant cools down quickly before it recirculates.


1. Electrical Components- The exterior air conditioner unit houses various electrical parts like capacitors, relays, and contactors, which control the motor and compressor. Any failure in these parts can prevent the unit from turning on.


1. Protective Grilles and Casing- Since the external air conditioning unit is exposed to outdoor weather, it comes with a durable casing and metal grille that protect internal components from debris, dust, and rain.

Installation Considerations

Installing the AC outdoor unit properly is crucial for efficiency and longevity. Here are some key factors to consider:

• Location: Install the device in an open, well-ventilated area to provide enough airflow. Avoid putting it in enclosed or darkened areas that can trap heat.



• Elevation: The unit should be mounted slightly above ground level to prevent water accumulation during rain.



• Vibration control: Use anti-vibration pads or brackets to reduce noise and mechanical strain.



• Sun exposure: While it needs ventilation, excessive direct sunlight can reduce efficiency. A shaded but open area is ideal.



• Distance from indoor unit: The refrigerant pipe length between the indoor and outdoor units should be within the manufacturer’s recommended limit to avoid performance loss.

Maintenance Tips

The AC outdoor unit works continuously in harsh weather conditions. For optimal performance, regular maintenance is essential to prevent costly repairs. Here are some tips:

1. Clean the coils regularly. Dirty coils reduce heat dissipation and increase energy consumption. Clean them every 3 to 4 months using a soft brush or low-pressure water spray.



1. Check the Fan Blades and make sure they are free of debris, dirt, and twigs. Damaged blades can create noise or imbalance.



1. Inspect the insulation on refrigerant pipes for cracks or worn insulation, which can affect cooling efficiency.



1. Maintain a 2 to 3 feet clearance around the air conditioning outdoor unit to ensure airflow. Remove leaves, plants, or other obstacles.



1. Get professional servicing, cleaning, and gas level checks at least once a year, especially before the summer season.

Troubleshooting Common Issues

Even with regular maintenance, your exterior air conditioning unit can have some issues. Here are some common problems and their easy fixes:

1. Unit Not Turning On: If the unit does not turn on, check for tripped circuit breakers or problems with the power supply.



1. Weak Cooling: Could be due to dirty coils, low refrigerant, or a faulty compressor.



1. Unusual Noise: Indicates loose fan blades, motor issues, or debris inside the casing.



1. Ice Formation: Often caused by clogged coils or low refrigerant.



1. Water Leakage: Check for blocked drain lines or excess condensation.


If these basic checks don’t fix the issue, it is probably best to contact a certified HVAC technician.

Advantages of Outdoor AC Units

The air conditioner's outdoor unit offers multiple benefits beyond just heat removal:

They are better at cooling because separating indoor and outdoor components ensures quieter and more efficient cooling. Also, since the compressor and fan are outside, indoor noise levels are minimal. The external air conditioning unit can be easily serviced without disturbing the indoor space. A properly installed and maintained AC outdoor unit can last over a decade with consistent performance.

Conclusion

The actual cooling hero of any cooling system is the exterior air conditioning unit. It contains critical components such as the compressor, condenser, and fan, which are responsible for removing the heat and keeping your home pleasantly cool. You can have a durable AC by positioning the AC external unit in a well-ventilated region. Clean the coils on a regular basis and have them professionally serviced.

Whether it is a split, central, or hybrid system, understanding your exterior air conditioner unit helps you maintain comfort, efficiency, and durability throughout the year.
